Suport universal electronice marine Ram Mounts, bila D

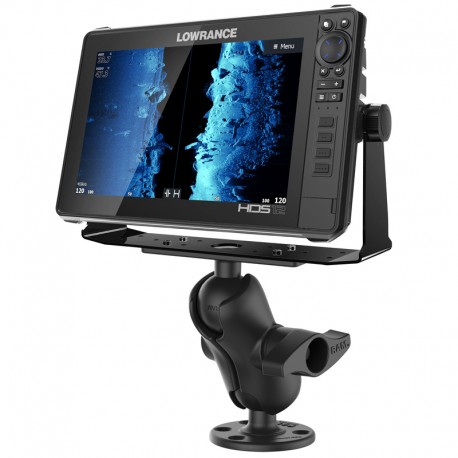

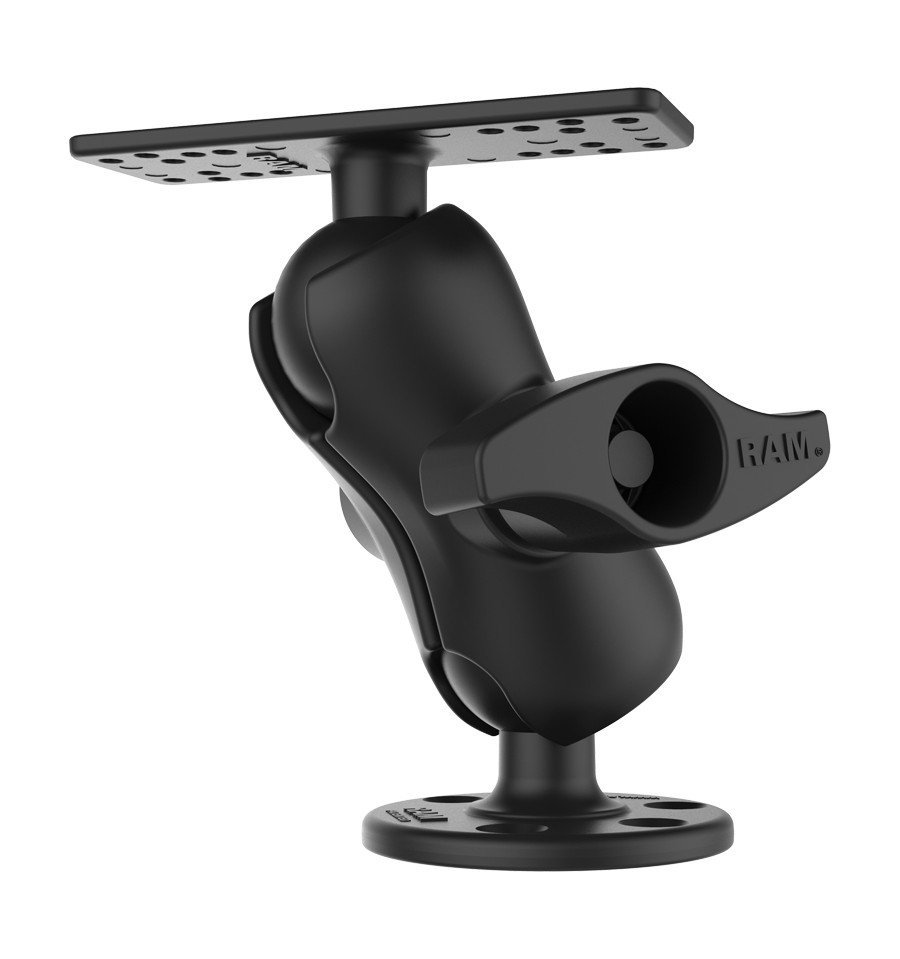

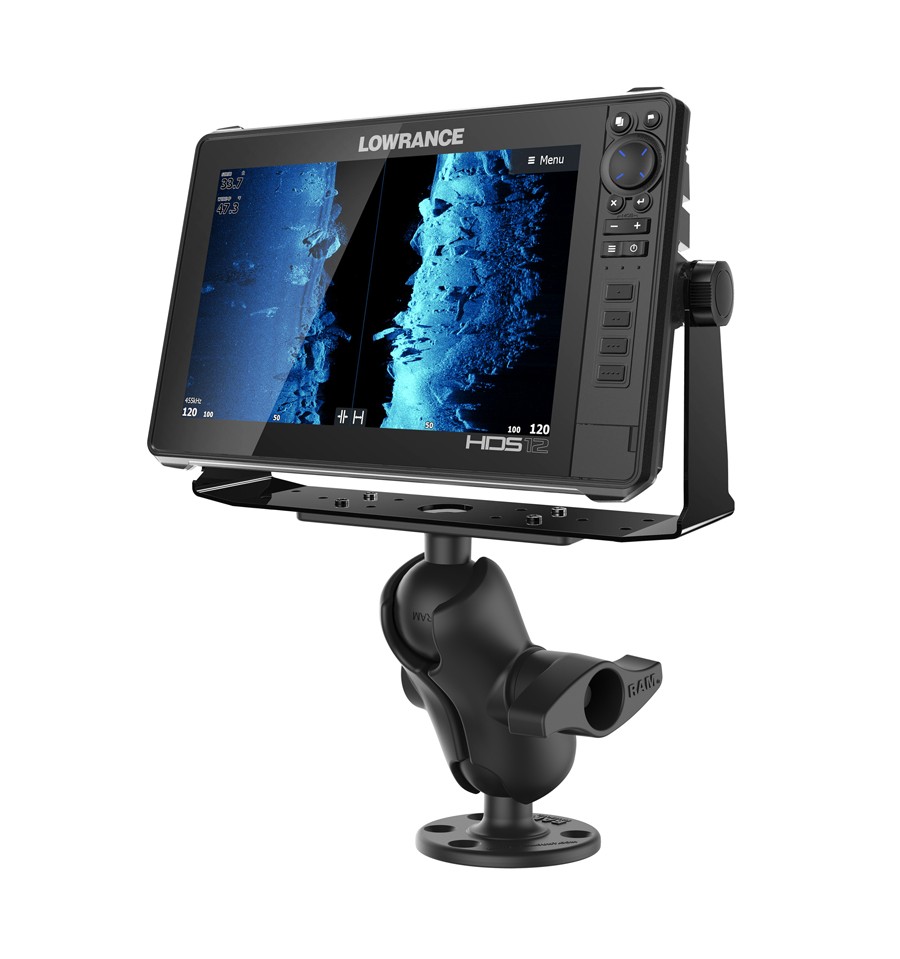

OVERVIEW: The RAM-D-115-C consists of a base with a 2.25” diameter D size ball, a short arm and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.

PRODUCT DIMENSIONS

Overall Height: 7.325"

SOCKET-TO-SOCKET LENGTH: 3.6"

HOLE PATTERN: See Drawings

PLATE SIZE: Top Plate: 6.25" x 2"

Bottom Plate: 3.68" Diameter

BALL/SOCKET SIZE: D Size (2.25")

WEIGHT CAPACITY: 6 lbs

MATERIALS: Marine-grade aluminum

PACKAGING TYPE: Retail Box

WEIGHT: 3.2 lbs.

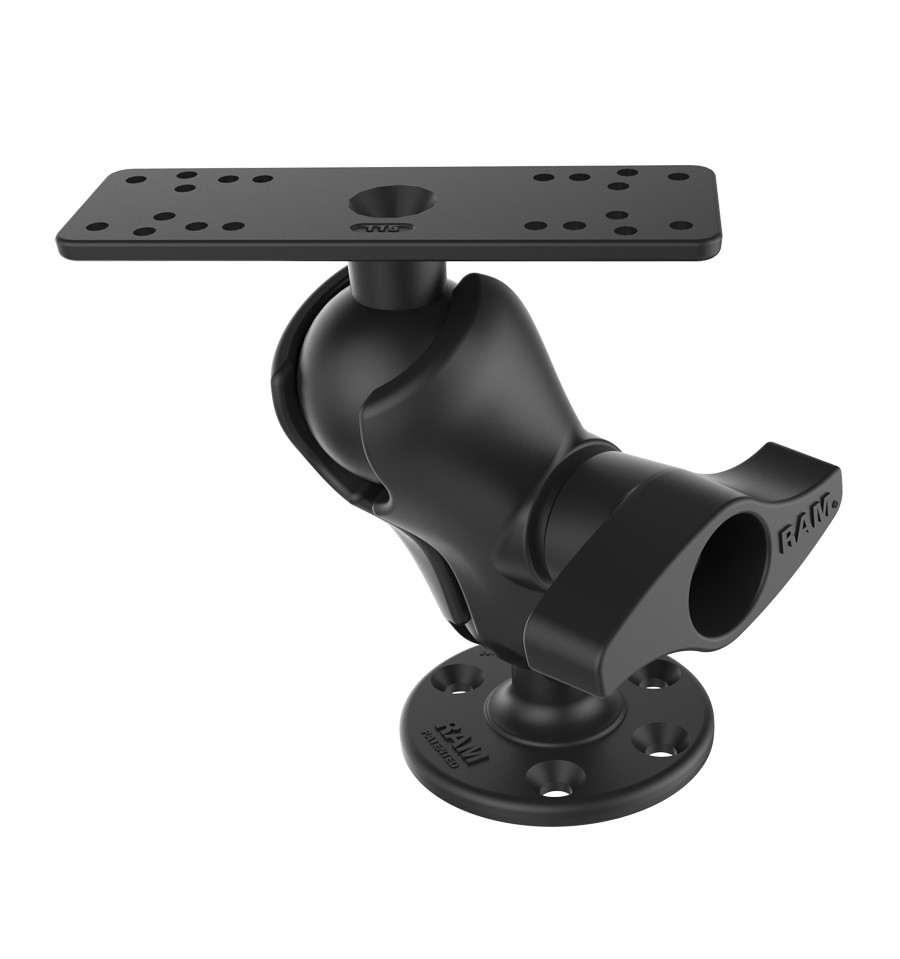

ADDITIONAL INFORMATION: The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Dispozitive compatibile:

Garmin

GPSMAP 8410

GPSMAP 8410xsv

GPSMAP 8412

GPSMAP 8412xsv

GPSMAP 8610

GPSMAP 8610xsv

GPSMAP 8612

GPSMAP 8612xsv

GPSMAP 922

GPSMAP 922xs

GPSMAP 942

GPSMAP 942xs

echoMAP Chirp 72-95 Series

ECHOMAP Plus 92-97 Series

Striker Plus 9sv

Fishfinders and GPS Chartplotters

Lowrance

HDS Carbon 7

HDS LIVE 9

HDS LIVE 12

Hook Reveal 7 Series

Hook Reveal 9 Series

HOOK-9

Fishfinders and GPS Chartplotters

Humminbird

Fishfinders and GPS Chartplotters

Raymarine

Fishfinders and GPS Chartplotters

FEATURES Complete flat surface, drill-down mounting solution compatible with 9"-12" fishfinder gimbal brackets RAM® Mounts ball and socket technology allows for near-infinite adjustability Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments Backed by a lifetime warranty
