Suport vertical pentru sonar Ram Mounts vertical 6" swing arm mount

OVERVIEW

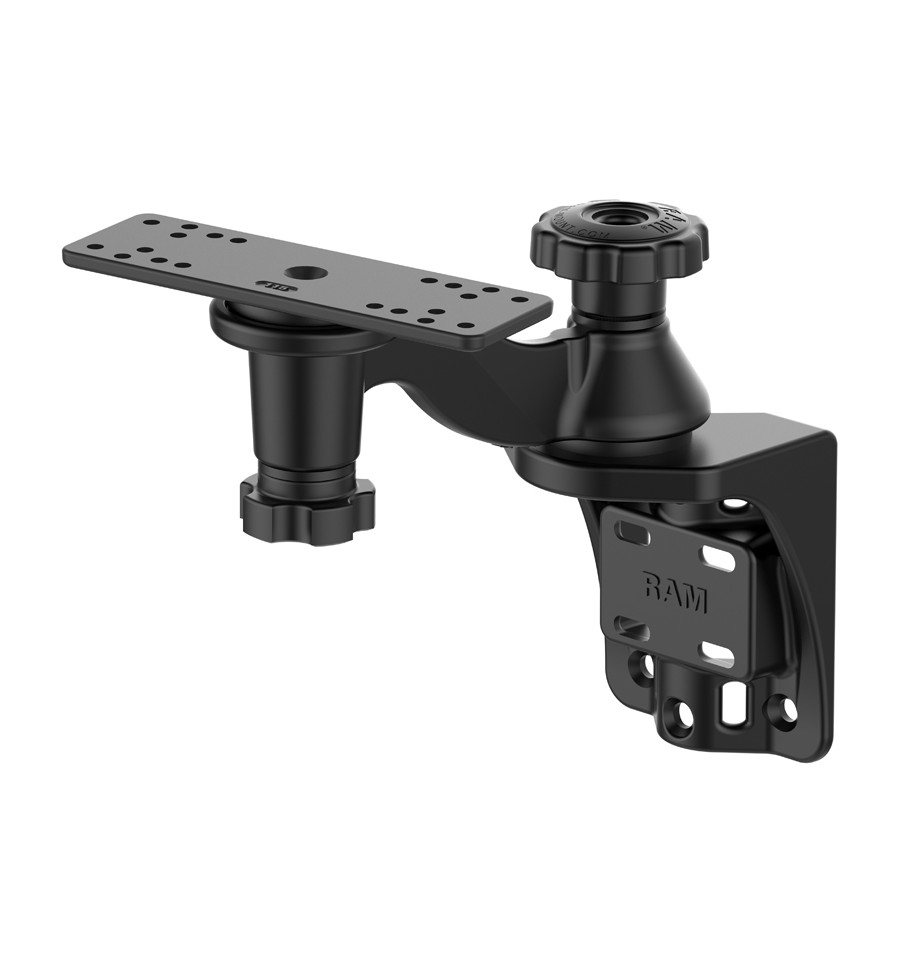

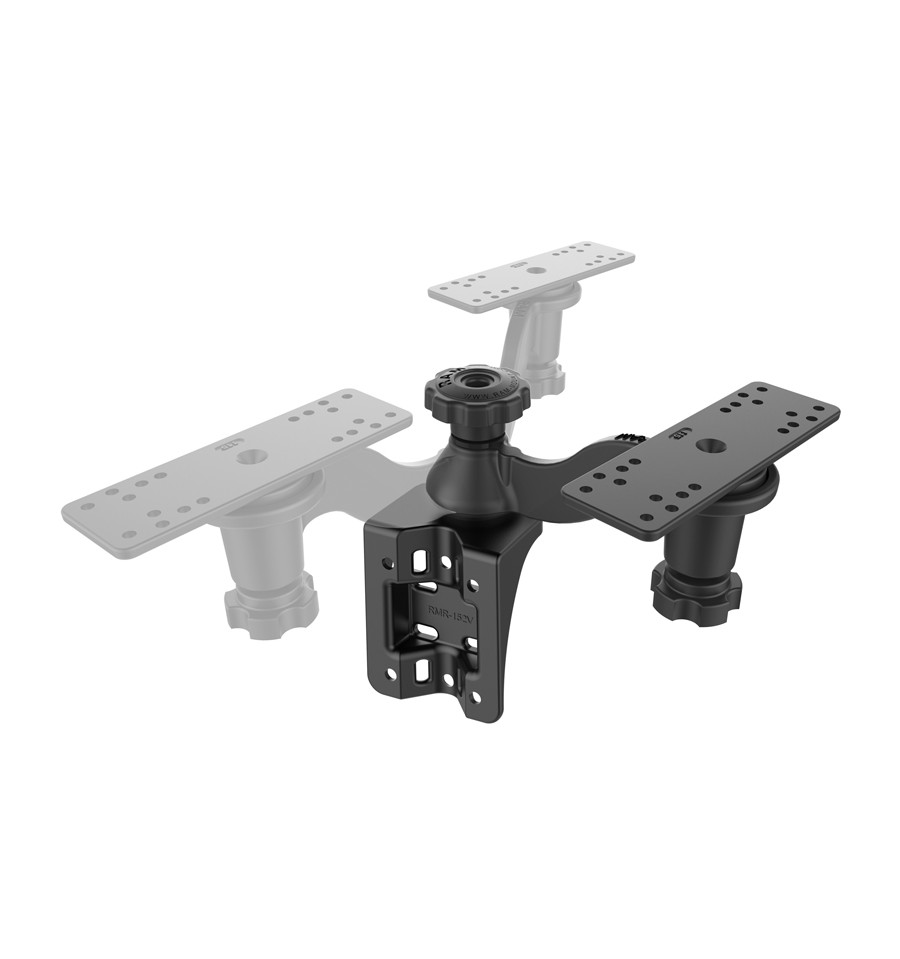

The RAM single swing arm mount consists of a 6" long swing arm mounted on a vertical surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

PRODUCT DIMENSIONS

Overall Height: 8.45"

Total Swing Arm Length: 6"

HOLE PATTERN

See Drawing

PLATE SIZE

Top Plate: 6.25" x 2"

Bottom Plate: 3.97" x 4.85"

WEIGHT CAPACITY

8 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

2.6 lbs.

ADDITIONAL INFORMATION

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

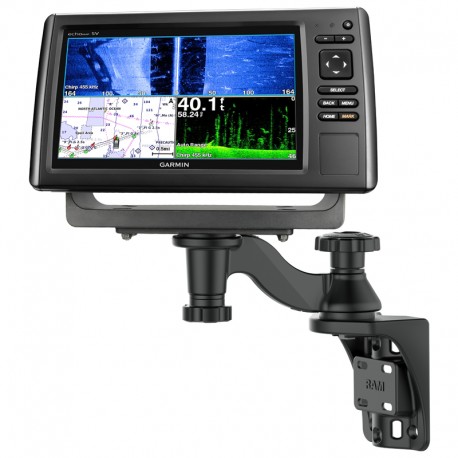

Dispozitive compatibile:

Garmin

echoMAP Chirp 72-95 Series

ECHOMAP Plus 92-97 Series

GPSMAP 722

GPSMAP 722xs

GPSMAP 742

GPSMAP 742xs

GPSMAP 8410

GPSMAP 8410xsv

GPSMAP 8412

GPSMAP 8412xsv

GPSMAP 8610

GPSMAP 8610xsv

GPSMAP 8612

GPSMAP 8612xsv

GPSMAP 922

GPSMAP 922xs

GPSMAP 942

GPSMAP 942xs

Striker Plus 5cv

Striker Plus 7cv

Striker Plus 7sv

Striker Plus 9sv

Fishfinders and GPS Chartplotters

Humminbird

Helix 8

Helix 9

Helix 10

Helix 12

Fishfinders and GPS Chartplotters

Lowrance

HDS Carbon 7

HDS LIVE 7

HDS LIVE 9

HDS LIVE 12

Hook Reveal 7 Series

Hook Reveal 9 Series

HOOK-9

Fishfinders and GPS Chartplotters

Raymarine

Fishfinders and GPS Chartplotters

FEATURES Universal drill-down fishfinder mounting solution features 6" swing arm for ideal device placement on a vertical surface Two pivot points allow for complete 360-degree rotation Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty
